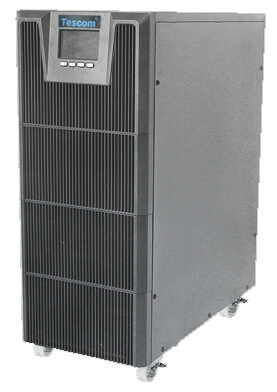

NEOLİNE 3L UPS SERIES
• 0.9 output power factor
• 0.99 input power factor
• Three phase input model support three phase PFC
• Input THDI < 5%
• Output voltage regulation 1%
• Output frequency regulation 0.1%
• The efficiency up to 94%
• Efficiency up to 93.5% when take the 30% load
• ECO mode efficiency up to 98%
• Battery voltage can be choice depend on capacity
• Convenience to get more back up time
• Convenience to save cost of battery
• Intelligent battery monitors
• Standant charge current 4A
• Adjustable charge current
• Optional 8A charger
• Support maximum 3 units for parallel working
• Support three phase input or single phase input for three phase UPS
• Super wide input voltage and frequency range suitable for bad power electirc environment
• Digital control DSP technology and best power component make the system safe and reliable
| MODEL | NEOLINE 3L 210 | |||
| Rated Power | 10KVA/9KW | |||
| Rated Voltage | 220VAC/380VAC 3phase with ground | |||
| Power factor | ≥ 0.95 (Three phase) | |||
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) | |||
| OUTPUT | ||||
| Voltage Regulation | 208/220/230/240VAC (±1%) | |||
| Power Factor | 0.9 | |||
| Voltage Distortion | Linear load < 2% Non-linear load < 5% | |||
| Frequency Regulation | 50/60 Hz±0.5Hz | |||
| Current Crest Ratio | 3:1 | |||
| Overload capability | 105%~125% for 10 min;125%~150% for 30 s; >150% for 500 ms | |||
| Transfer Time | 0ms (AC mode→Battery mode) | |||
| Efficiency | > >94% | |||
| BATTERY | ||||
| DC voltage | 192VDC | |||
| Recharge Current | 4A | |||
| DISPLAY | ||||
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. | |||
| COMMUNICATION | ||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | |||
| PHYSICS CHARACTERISTIC | ||||
| Dimensions (mm) HxWxD | 500x212x420 | |||
| Net weight (kg) | 16.9 | |||
| ENVIRONMENT | ||||
| Operating temperature range | 0°C ~ 40 °C | |||
| Audible Noise | < 55 dBA | |||
