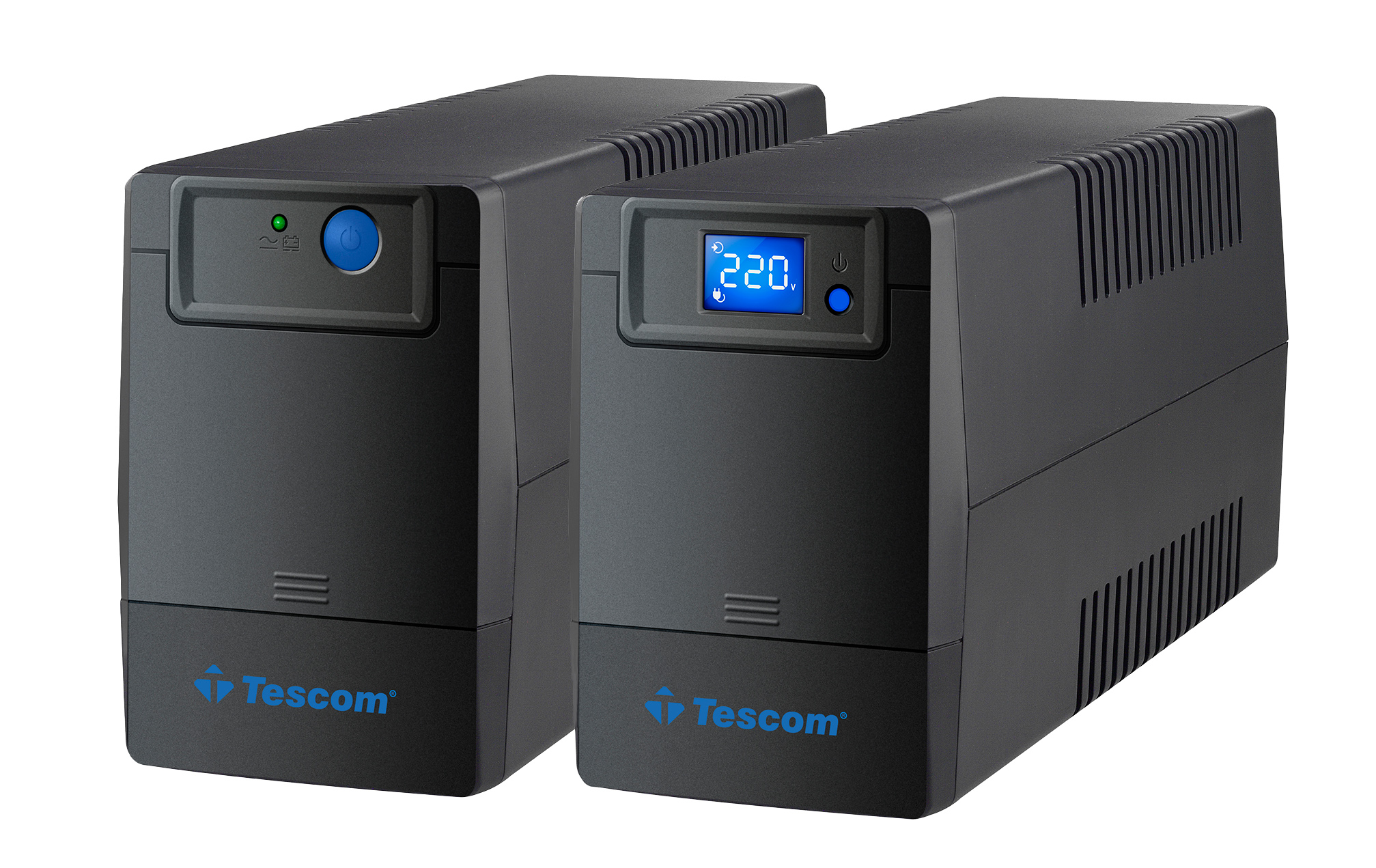

LEO II UPS SERIES
• Compact size
• Touch screen LCD to display UPS information circularly (optional)
• USB, RJ11 communication port (optional)
• Excellent microprocessor control guarantees high reliability
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Simulated sine wave output
• Off-mode charging
• Cold start function
• Generator compatible (option)
| MODEL | Leo II 650 | Leo II 850 | Leo II 1000 | Leo II 1500 | Leo II 2000 | |
| Capacity | 650VA / 360W | 850VA / 480W | 1000VA / 600W | 1500VA / 900W | 2000VA / 1200W | |
| INPUT | ||||||
| Voltage | 110/120 VAC* or 220/230/240 VAC | |||||
| Voltage range | 81 - 245 VAC* / 162 - 290 VAC | |||||
| Frequency range | 50Hz / 60Hz (auto sensing) | |||||
| OUTPUT | ||||||
| Output voltage | 110/120 VAC* or 220/230/240 VAC | |||||
| AC voltage regulation (batt. mode) | ± 10% | |||||
| Frequency range (batt. mode) | 50Hz / 60Hz ± 1Hz | |||||
| Transfer time | Typical 2-6 ms | |||||
| Waveform (batt. mode) | Simulated Sinewave | |||||
| BATTERY | ||||||
| Battery type & number | 12V / 7Ah x 1 | 12V / 9Ah x 2 | 12V / 7Ah x 2 | 12V / 9Ah x 2 | ||
| Typical recharge time | 4-6 hours recover to 90% capacity | |||||
| INDICATORS | ||||||
| LCD display | Input voltage, output voltage, battery capacity, load level and UPS status | |||||
| LED display | AC Mode | Green lighting | ||||
| Battery Mode | Green flashing | Yellow flashing | ||||
| Fault | - | Red flashing | ||||
| PROTECTION | ||||||
| Full protection | Overload, discharge, and overcharge protection | |||||
| ALARM | ||||||
| Battery mode | Sounding every 10 seconds | |||||
| Low battery | Sounding every seconds | |||||
| Overload | Sounding every 0.5 seconds | |||||
| Fault | Continuously sounding | |||||
| PHYSICAL | ||||||
| LCD display | Dimension (mm) HxWxD | 142x101x300 | 182x130x320 | |||
| Net weight (kg) | 4.4 | 5 | 8.2 | 10.4 | 10.6 | |
| LED display | Dimension (mm) HxWxD | 142x101x279 | 182x130x320 | |||
| Net weight (kg) | 4.2 | 4.9 | 8.2 | 10.4 | 10.6 | |
| ENVIRONMENT | ||||||
| Humidity | 0 - 90% RH @ 0°C - 40°C (non-condensing) | |||||
| * 110/120VAC system is only available for 650/850VA. | ||||||
